300kg Welding Positioner Rotary Turning Table for Pipe Flange Circular Welding

Name: 300kg Welding Positioner Rotary Turning Table for Pipe Flange Circular Welding
Brand: LEMAR
Price: 500 USD

Quality 300kg Welding Positioner Rotary Turning Table for Pipe Flange Circular Welding for sale

Flip Angle : 0-90

Color : Customized

Rotation Speed : 0.1-1 Rpm

Brand Name : LEMAR

Chuck : Optional

Lead Time : 3 Days

Welding Mode : Pipe TIG MIG Welding

Place of Origin : WUXI

Supply Ability : 500 units/month

Table Diameter : 600mm

Certification : CE

Payment Terms : D/A,L/C,D/P,T/T

Motor : 0.37kw

Table Turning Angle : 0-135 Turning Table

Model Number : BWJ-3

MOQ : 1

Price : 500-1000USD

Delivery Time : 10-20 work days

Packaging Details : 73.00cm * 7600cm * 80.00cm

Contact Now

300kg Welding Positioner Rotary Turning Table for Pipe Flange Circular Welding

Product Overview

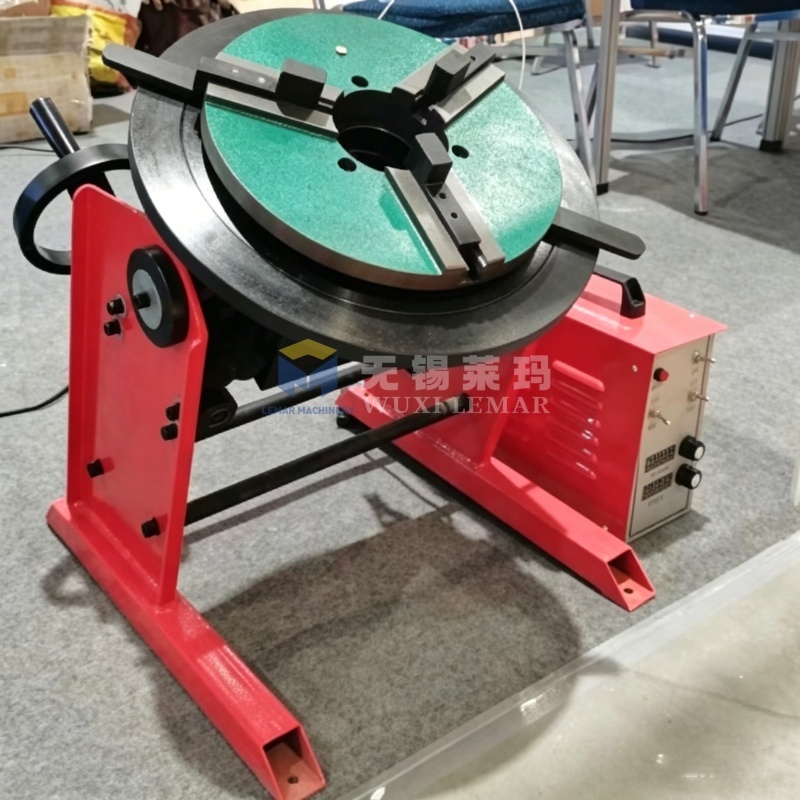

The 300kg welding positioner is a compact automatic workpiece rotating & tilting device independently developed by Lemar Machinery. It supports 360° infinite rotation and 0-90° electric tilting, perfectly positioning pipe, flange, small tank and pressure vessel workpieces to horizontal/flat welding position.

Stepless speed regulation, stable operation and self-locking tilting structure greatly reduce welder labor intensity, improve circular welding seam forming quality and production efficiency. Widely adopted by steel structure, pressure vessel, pump valve and pipe fabrication factories worldwide.

300kg Welding Positioner Rotary Turning Table for Pipe Flange Circular Welding

Technical Specifications

Item	Standard Technical Data
Model	LB-300 (Lemar Customizable)
Horizontal Rated Load	300 KG
Vertical Allowable Load	150 KG
Worktable Diameter	Φ500mm
Central Hole Diameter	Optional 90mm / 130mm
Tilting Range	0° ~ 90° Electric Tilting
Rotation Speed	0.1~10 RPM Stepless Adjustable
Input Power	AC 220V 50/60Hz (110V customizable)
Rotation Motor Power	200W
Max Allowable Eccentricity	150mm
Net Weight	130 KG
Optional Accessory	KD300/KD400 3-jaw Chuck, Digital PLC controller
Certification	CE, ISO9001

Applicable Workpieces

Pipe flange, elbow, small pressure vessel, LPG gas cylinder, pipe fitting, valve body, bellows, small tank, machinery structural parts circular seam welding.

Target End-user Factories

Pipe & pipeline prefabrication plants
Pressure vessel & storage tank manufacturers
LPG cylinder & gas equipment factories
Pump, valve and hydraulic component processing workshops
Steel structure fabrication & engineering machinery parts factories

Key Features

Stable 300kg Rated Load Design

Horizontal rated load 300kg, vertical allowable load 150kg; thickened integral steel frame, stress relief annealing treatment, long-term heavy load no deformation, suitable for continuous batch workshop production.

Central Through Hole Design + T-slot Worktable

90/130mm optional central through hole, long pipe can directly pass through; worktable reserved multiple T-slots, easy to install 3-jaw self-centering chuck, fixture and custom tooling. Built-in conductive device to avoid welding cable winding and burning control box.

Dual Control Mode + Safe Protection

Standard foot pedal switch + panel button dual operation; equipped with limit travel switch, emergency stop button, overload protection; IP54 control box, dustproof and splash-proof, adapts harsh welding workshop environment.

Delivery, Packaging & After-sales Service

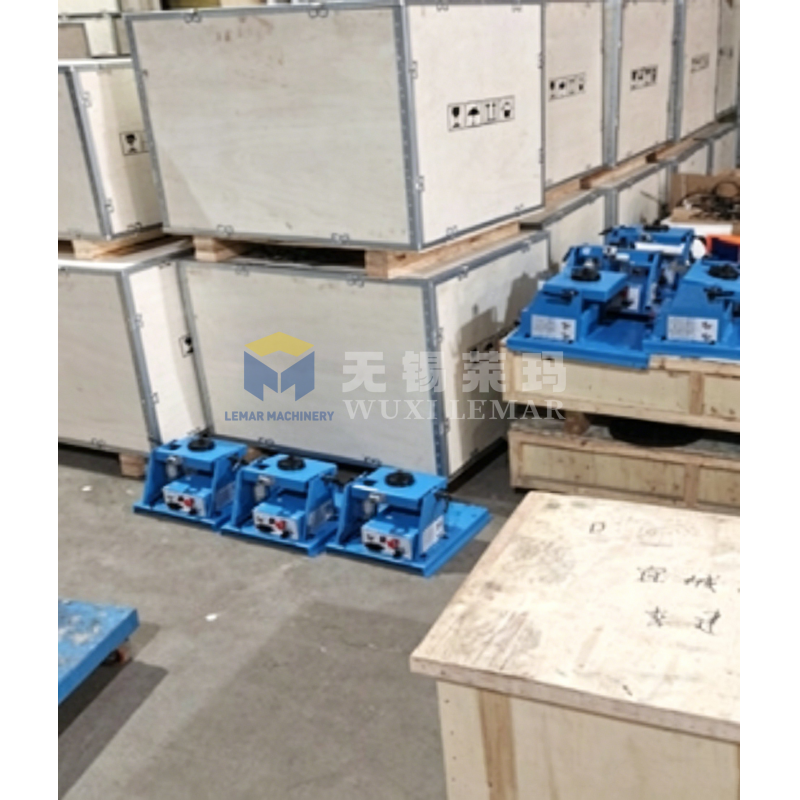

Packing: Standard export seaworthy solid wooden case packaging, moisture-proof, shock-proof, suitable sea freight long-distance transportation.
Delivery Time: Standard model stock within 3-7 working days; customized configuration 12-18 working days after deposit confirmation.
Trade Terms: Support EXW, FOB Shanghai/Ningbo, CFR, CIF, DAP multiple trade terms.
After-sales Service:
- Whole machine 1-year warranty, core motors & reducers free spare parts supply within warranty period
- Global online video technical guidance, remote debugging, operation training
- Overseas local engineer on-site installation & maintenance support available

Frequently Asked Questions

Q1: Can this 300kg positioner work with MIG and TIG welding machine?

A: Fully compatible with all brands MIG, TIG, submerged arc welding machines. Equipped with independent conductive slip ring, no cable winding during continuous rotating welding.

Q2: Is the tilt angle fixed or adjustable arbitrarily?

A: Electric 0-90° stepless tilting, worm gear self-locking, can stay and lock at any angle manually, no rebound or sliding.

Q3: Can I add a chuck to clamp workpieces?

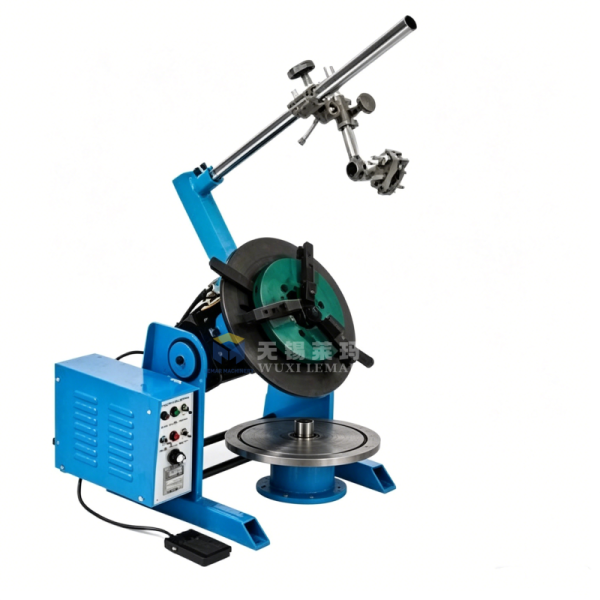

A: Yes, we support matched KD300/KD400 three-jaw chuck installation, one-time clamping pipe/flange workpieces, greatly improve clamping efficiency.

Q4: Can the voltage be customized for Southeast Asia, Europe market?

A: Support custom 110V/220V single phase, 380V three phase power supply, adapt global different national grid standards.

Q5: What is the minimum order quantity?

A: MOQ 1 set, factory direct sales without middleman markup; bulk order quantity negotiable with special discount.
